Miniature_type
 · Micro Miniature Size General
 · Low leakage capacitors
 · High temperature resistant capacitance
 · RoHS Compliance
 · Most suitable for high density electronic equipment.
  Series Features Temperature
Lord Life (℃)		 Rated Voltage
Range(VDC)		 Operating
Temperature Range		 Capacitance
(μF)		 PDF
SMX 5mmL Micro Miniature Size General 85℃ 1000H 6.3~50 -40 ~+85 0.1 ~ 330

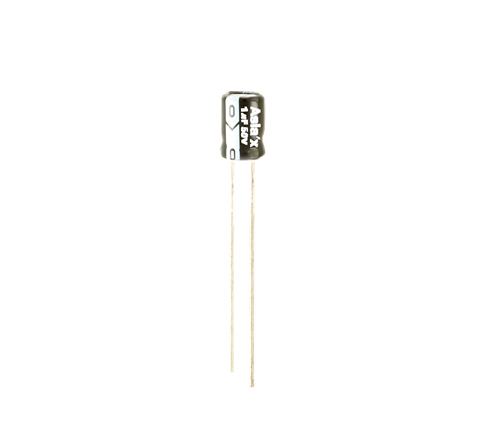

S5X 5mmL Micro Miniature Size General 105℃ 1000H 6.3~50 -40 ~+105 0.1 ~ 100

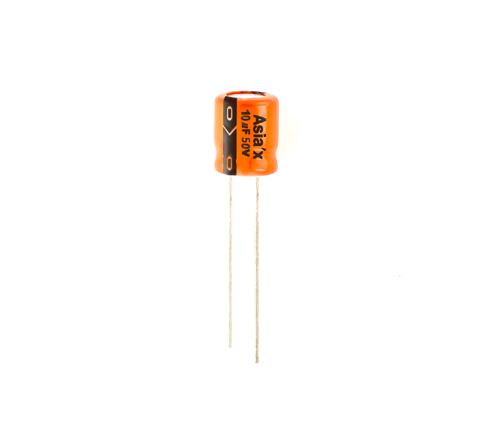

 SEX 5mmL Low Leakage Current 105℃ 1000H 6.3~50 -40 ~+105 0.1 ~100

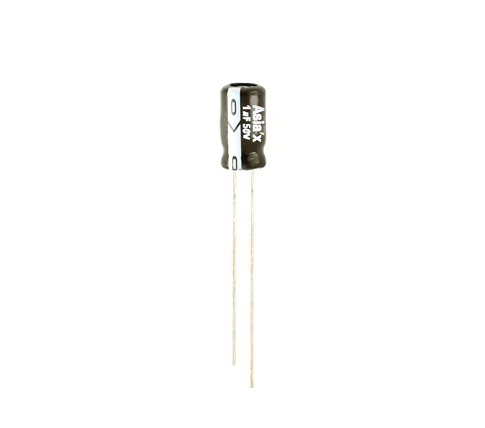

SIX 7mmL General Purpose 85℃ 2000H 4 ~ 63 -40 ~+85 0.1 ~ 470

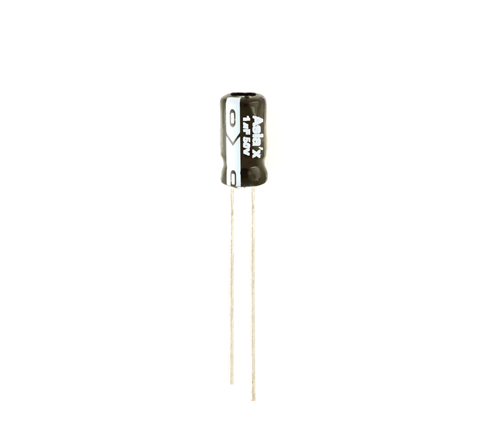

SSX 7mmL General Purpose 105℃ 1000H 4 ~ 63 -40 ~+105 0.1 ~ 470

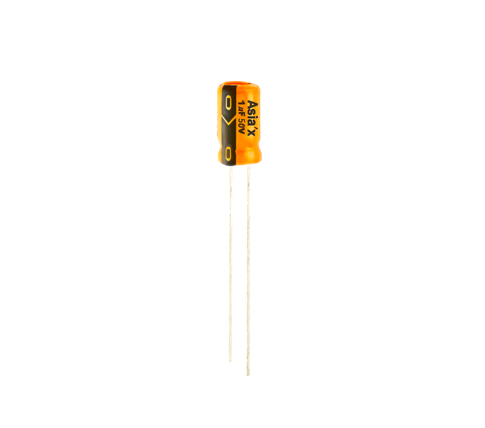

 LKX

 General Purpose 105℃

 105℃ 1000H 4 ~ 63 -40 ~+105 0.1 ~ 470
