Series |
Features |
Temperature
Lord Life (℃) |
Rated Voltage
Range(VDC) |
Operating
Temperature Range |
Capacitance
(μF) |
PDF |
 |

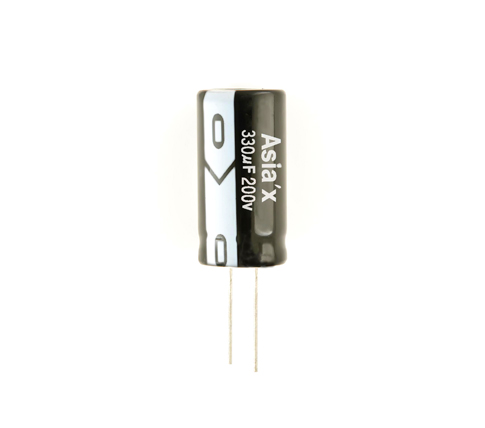

MKX |
General Purpose 85℃ high voltage |
85℃ 2000H |
160 ~ 450 |
-40 ~+85 |
0.47 ~ 470 |
 |
 |
MEX |
General Purpose 85℃ high voltage |
85℃ 2000H~3000H |
160 ~ 450 |
-40 ~+85 |
0.47 ~ 470 |
|
 |
MHX |
General Purpose 105℃ high voltage |
105℃ 1000H~2000H |
160 ~ 500 |
-40 ~+105 |
0.47 ~ 470 |
|
 |

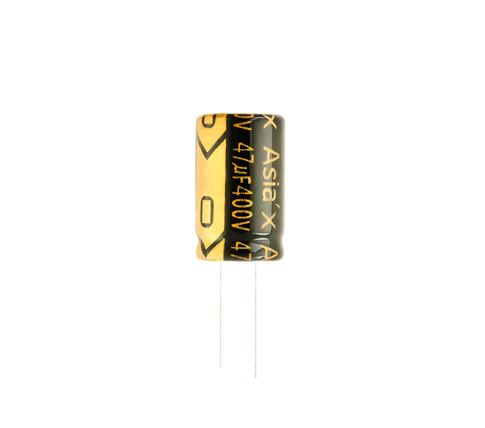

MSX |
General Purpose 105℃ high voltage |
105℃ 2000H |
160 ~ 450 |
-40 ~+105 |
0.47 ~ 470 |
|
 |

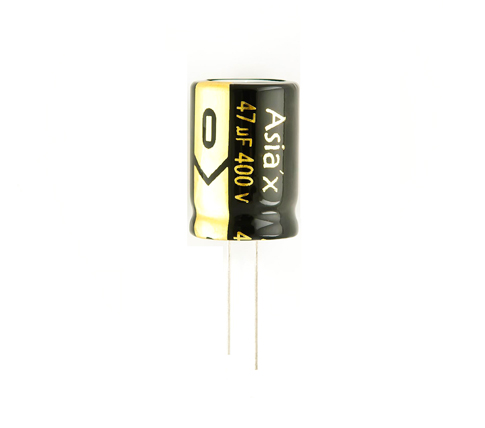

MTX |
General Purpose 105℃ high voltage |
105℃ 2000H~3000H |
160 ~ 500 |
-40 ~+105 |
0.47 ~ 470 |
|
 |

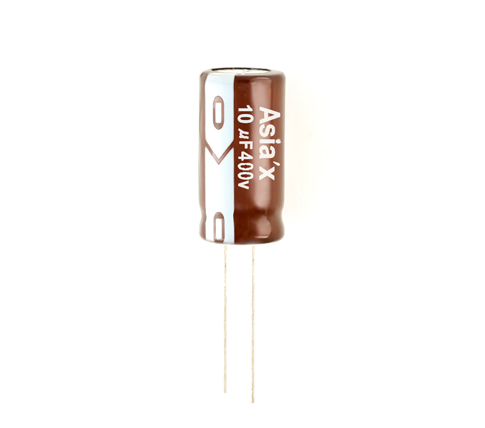

MLX |
High ripple current ,long life |
105℃
3000H~ 5000H |
160 ~ 450 |
-40 ~+105 |
10 ~ 330 |
|
 |

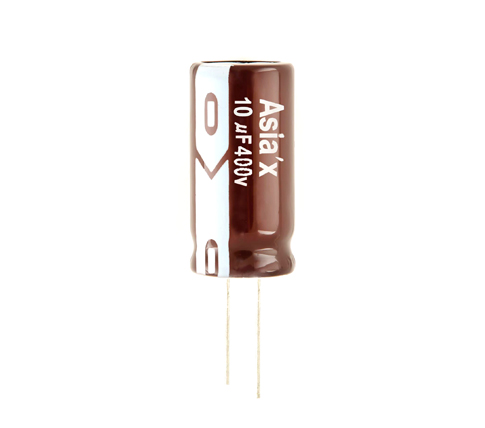

MVX |
High ripple current ,long life |
105℃ 4000H~7000H |
160 ~ 450 |
-40 ~+105 |
2.2 ~ 330 |
|
 |

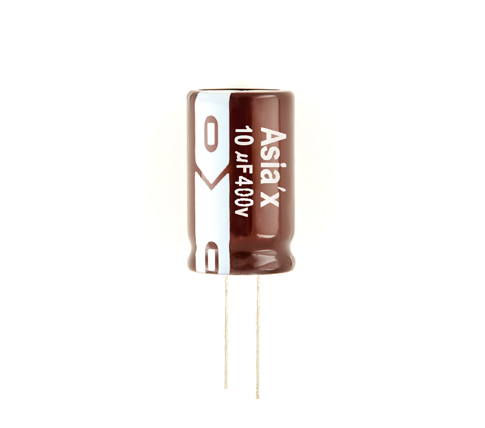

MZX |
High ripple current ,long life |
105℃ 8000H~10000H |
200 ~ 450 |
-40 ~+105 |
4.7 ~ 330 |
|
 |

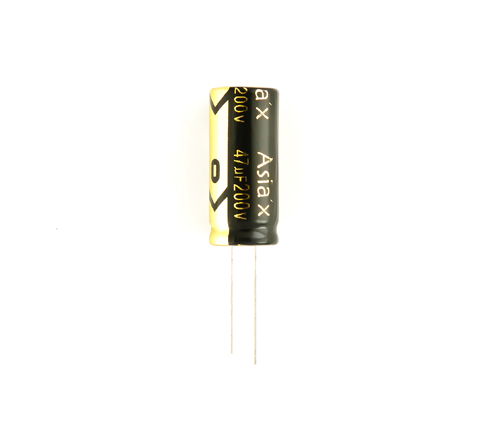

MRX |
High Temperature , High Voltage |
125℃ 2000H |
160 ~ 450 |
-25 ~+125 |
4.7 ~ 330 |
|
