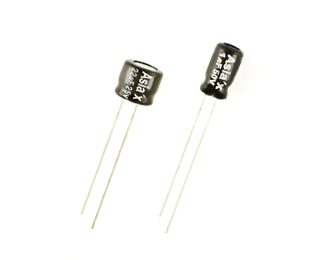

· Non-Polar · High temperature resistant · Low leakage current · RoHS Compliance
·
Used in miniaturization and high flower-beds characteristics, applicable to the polarity reversal circuit and must berapid reverse voltage circuit of the incas
Series
Features
Temperature Lord Life (℃)
Rated Voltage Range(VDC)
Operating Temperature Range
Capacitance (μF)
PDF

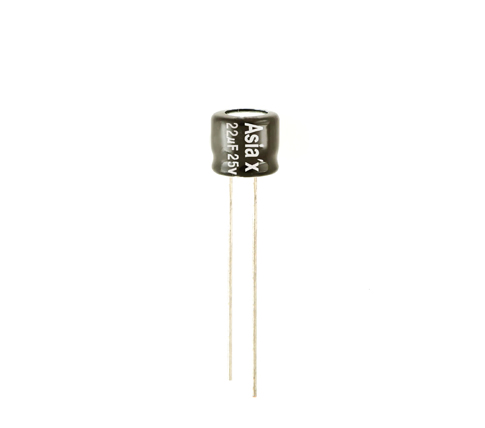

SPX
5mmL Non-Polar
85℃ 1000H
6.3 ~ 50
-40 ~+85
0.1 ~ 47
SNX
7mmL Non-Polar
85℃ 1000H
6.3 ~ 50
-40 ~+85
0.1 ~ 100
NPX
85℃ Non-Polar
85℃ 2000H
6.3 ~ 100
-40 ~+85
0.1 ~ 6800

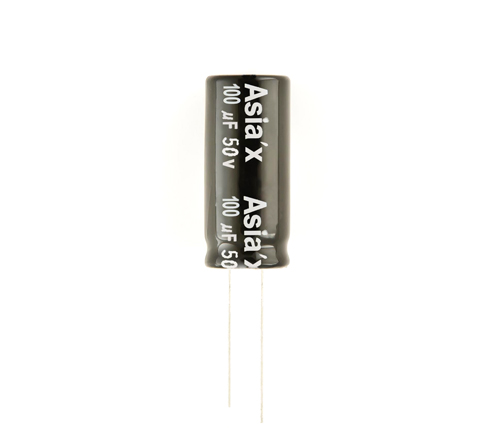

NKX
105℃ Non-Polar
105℃ 1000H
6.3 ~ 100
-40 ~+105
0.1 ~ 1000
