Products - Large size snap-in
Home / Products
· Snap-in General Purpose
· High temperature resistant
· Long life
· RoHS Compliance
·
Apply to high temperature resistant ripple current, suitable for electronic equipment filter circuits
Series
Features
Temperature
Lord Life (℃)
Rated Voltage
Range(VDC)
Operating
Temperature Range
Capacitance
(μF)
PDF

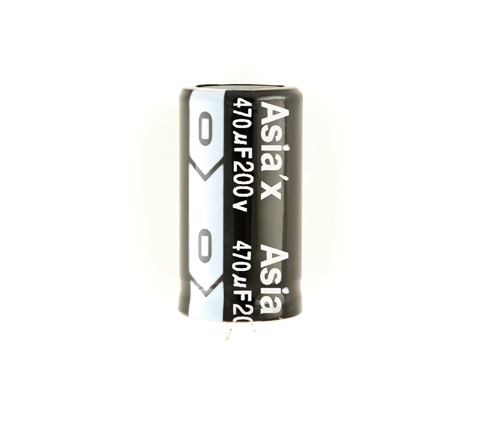

LPX
Snap-in General Purpose
85℃ 2000H
10 ~ 100
-40 ~+85
820 ~82000
160 ~ 450
-25 ~+85
47 ~2200

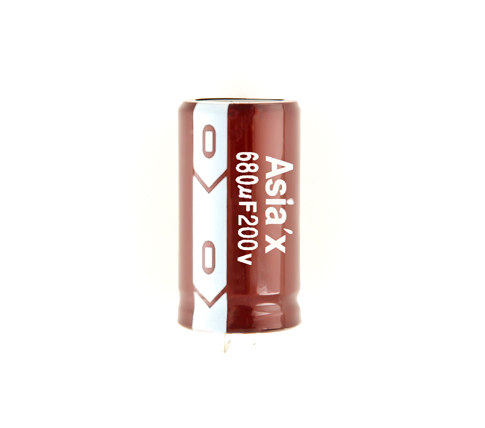

LHX
Snap-in General Purpose
105℃ 1000H
10 ~ 100
-40 ~+105
820 ~82000
160 ~ 450
-25 ~+105
47 ~2200

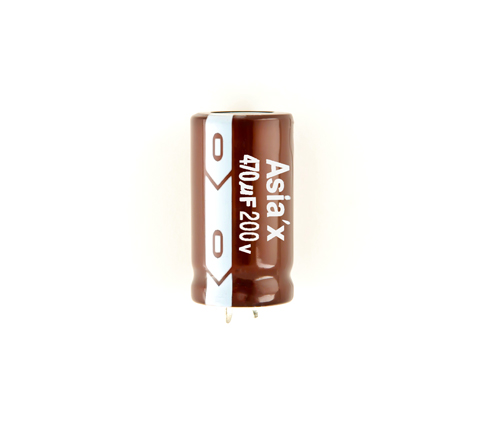

LGX
Snap-in long life
105℃ 2000H
10 ~ 100
-40 ~+105
680 ~56000
160 ~ 500
-25 ~+105
47 ~2200

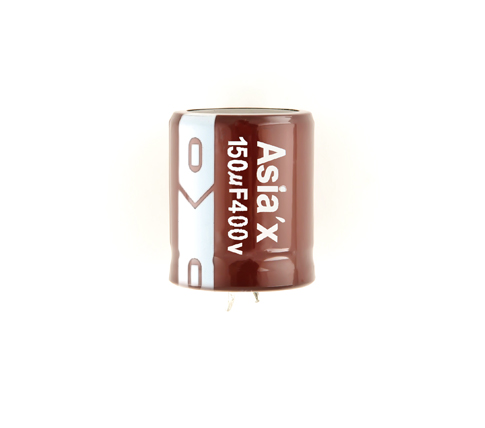

LSX
Snap-in long life or powwer
105℃ 3000H
16 ~ 100
-40 ~+105
680 ~22000
160 ~ 450
-25 ~+105
47 ~1800

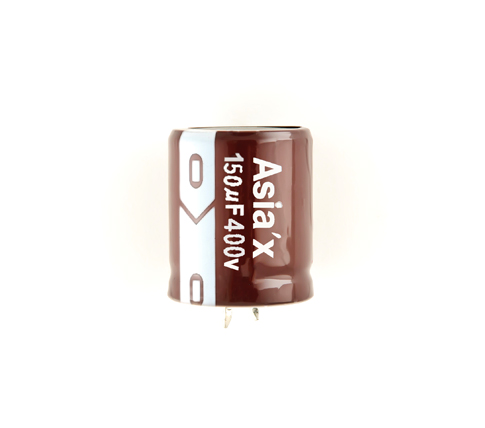

LZX
Snap-in long life or powwer
105℃ 5000H
200 ~ 450
-25 ~+105
47 ~ 1200
