· Suppress the interference · Can withstand the impact · With self-healing · RoHS Compliance
·
Bypass, antenna coupling between line, line between jumper and electric circuit taking system, effective electromagnetic filtering of switch power supply circuit control switch of the big moment waves current affairs machine/brake fluid and controller device

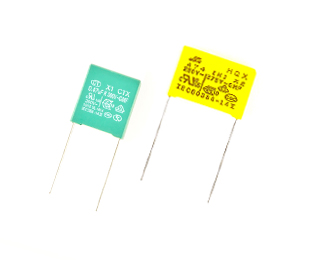

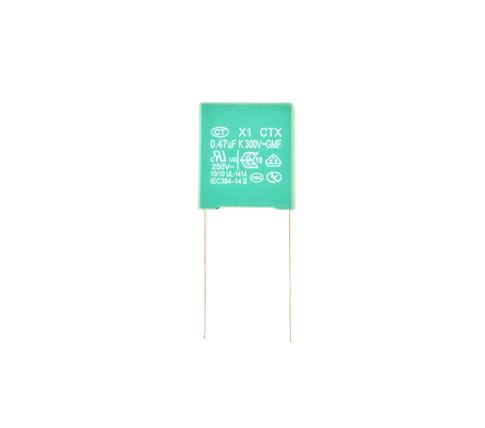

X1

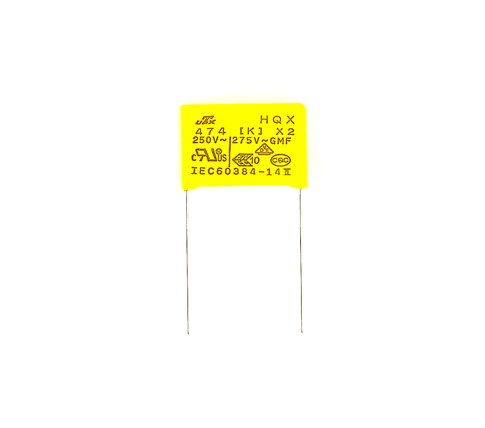

X2
Features
Miniaturizatio n High and stable quality
Miniaturizatio n High and stable quality
Voltage Range (VDC) 50~60Hz
250~300
250~275
Capacitance Range (uF)
0.0047~10
0.0047~1.0
Cap. Tol.(%)
J(±5) K(±10) M(±20)
J(±5) K(±10) M(±20)
Withstand Voltage
1200V.AC (60Hz) or 2200V.DC
1200V.AC (60Hz) or 2100V.DC
Dissipation Factor
≦0.1% at 1KHz and 20℃ ≦0.3% at 10KHz and 20℃
≦0.1% at 1KHz and 20℃ ≦0.3% at 10KHz and 20℃
Case Color
Green
Yellow
