Products - General purpose Home / Products
Large size snap-in
Non-polar type
High voltage high reliability
High frequeney low impedance
General purpose
Miniature type

General_purpose
 · General Purpose
 · Low leakage capacitors
 · High temperature resistant capacitance
 · RoHS Compliance
 ·  Used in general the livelihood of the people use electronic equipment, communications equipment or general industrial use products, etc
  Series Features Temperature
Lord Life (℃)		 Rated Voltage
Range(VDC)		 Operating
Temperature Range		 Capacitance
(μF)		 PDF

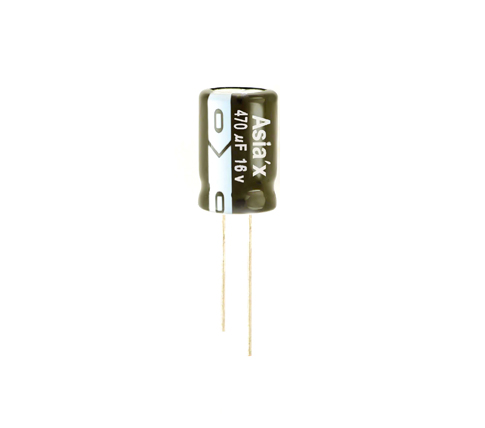

SKX General Purpose 85℃ 85℃ 2000H 6.3 ~ 100 -40 ~+85 0.1 ~ 15000

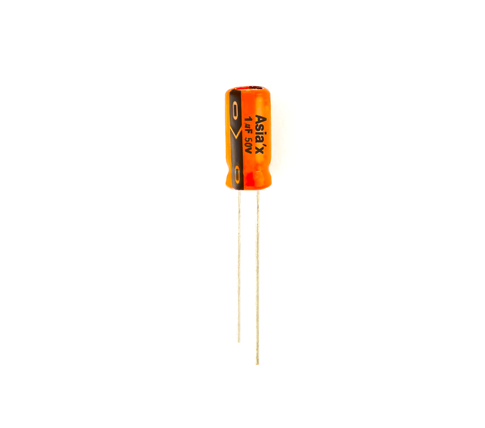

SLX Low Leakage Current 85℃ 2000H 6.3 ~ 100 -40 ~+85 0.1 ~4700

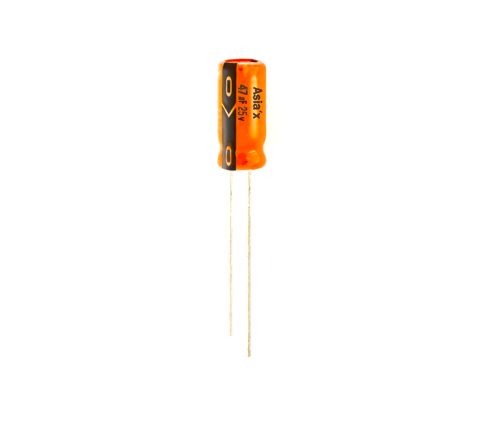

LLX Low Leakage Current 105℃ 2000H 6.3 ~ 100 -40 ~+105 0.1 ~4700

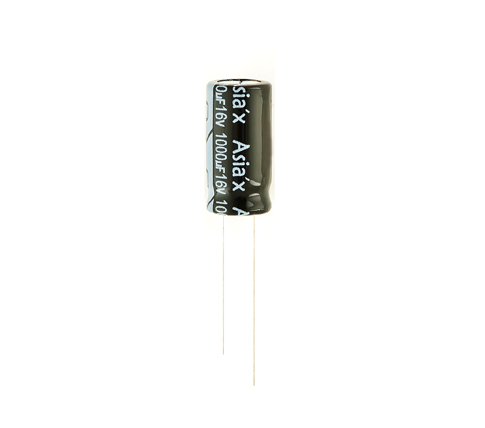

TNX General Purpose 105℃ 105℃ 1000H 6.3 ~ 100 -40 ~+105 0.1 ~ 15000

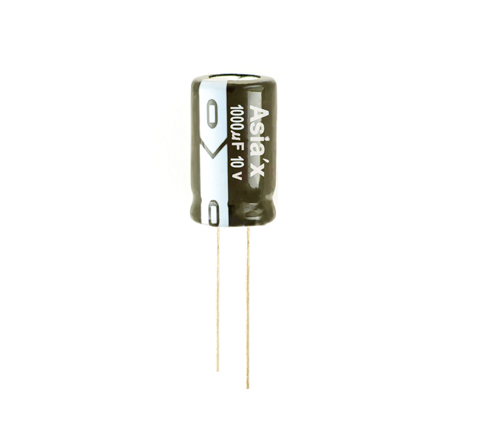

TRX General Purpose 105℃ 105℃ 2000H 6.3 ~ 100 -40 ~+105 0.1 ~ 15000

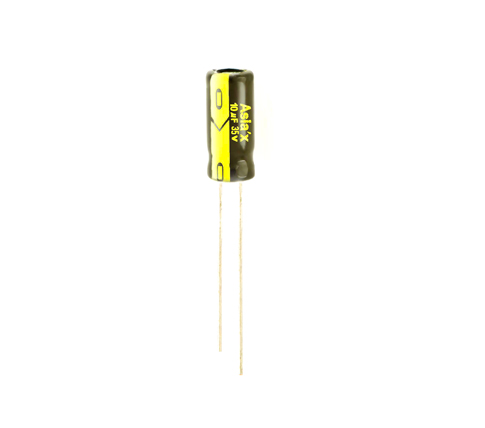

THX

High Temperature

 125℃ 1000H 10 ~ 63 -40 ~+125 0.47 ~ 1000
