Products - High frequeney low impedance
Home / Products
· High frequency low impedance
· Lowest impedance and long life
· High ripple current long life low impedance
· RoHS Compliance
·
Apply to convert the mode power supply output loop, the CPU motherboard, etc
Series
Features
Temperature
Lord Life (℃)
Rated Voltage
Range(VDC)
Operating
Temperature Range
Capacitance
(μF)
PDF

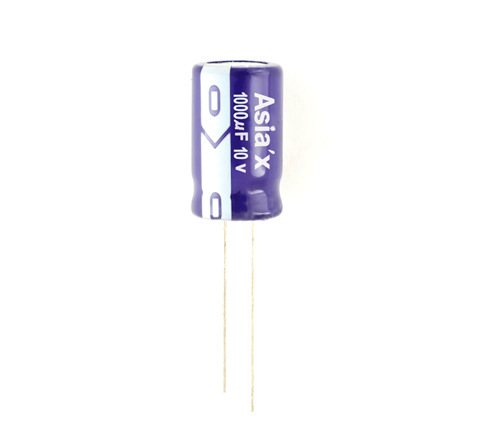

TMX
High ripple current low impedance
105℃ 2000H
6.3 ~ 100
-40 ~+105
4.7 ~ 15000

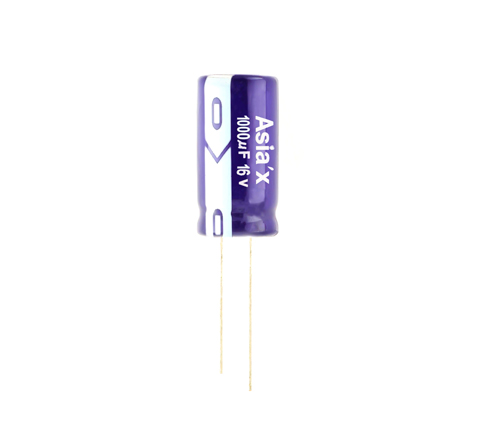

TEX
High ripple current low impedance
105℃ 2000H~4000H
6.3 ~ 100
-40 ~+105
1 ~ 22000

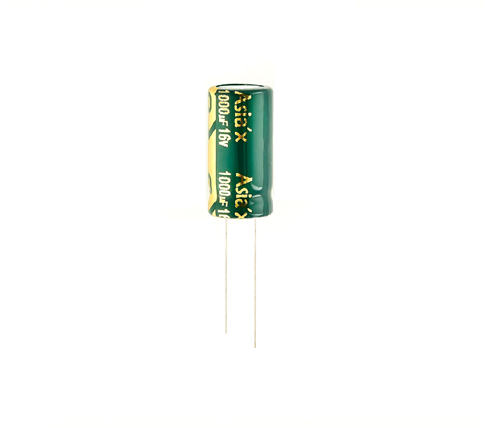

TLX
High ripple current long life low impedance
105℃ 2000H~5000H
6.3 ~ 63
-40 ~+105
22 ~ 6800

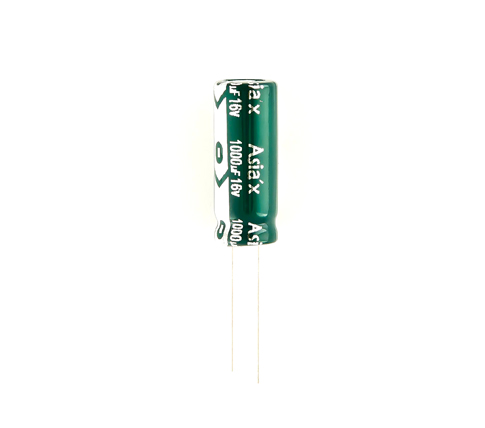

TZX
High ripple current long life low impedance
105℃ 4000H~7000H
6.3 ~ 100
-40 ~+105
1 ~ 15000

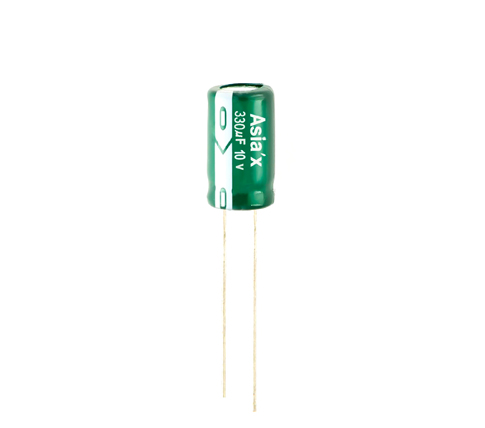

TSX
High ripple current lowest impedance
105℃ 2000H~5000H
6.3 ~ 50
-55 ~+105
15 ~ 6800

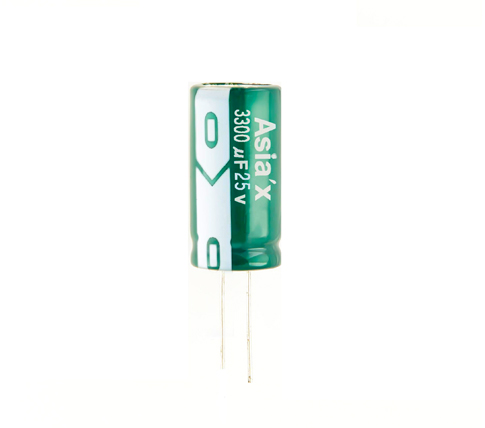

TKX
Lowest impedance and long life
105℃ 4000H~10000H
6.3 ~ 100
-40 ~+105
6.8 ~ 15000
